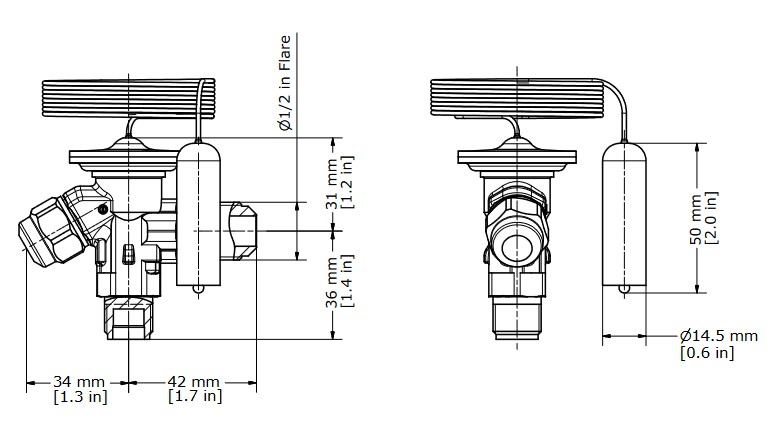

TX Valve TX2 R22 Internal Equal -40/+10C 3/8"MSAE x 1/2"MSAE - 68Z3206

TX Valve TX2 R22 Internal Equal -40/+10C 3/8"MSAE x 1/2"MSAE

Part Number: 68Z3206

TX Valve TX2 R22 Internal Equal -40/+10C 3/8"MSAE x 1/2"MSAE

Part Number: 68Z3206

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

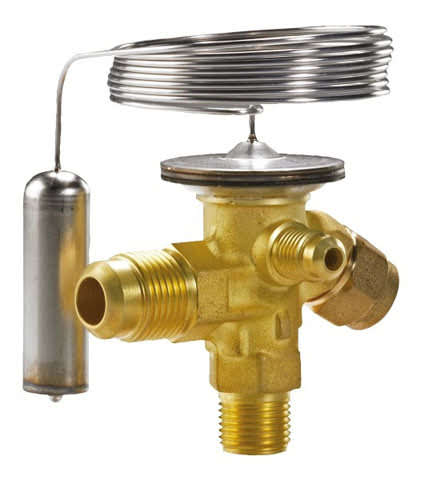

  • T2 / TE2, Thermostatic expansion valves

    T2 / TE2 thermostatic expansion valves are used for liquid injection into evaporators on both refrigeration and air conditioning systems using fluorinated refrigerants e.g. R407C, R22, R134a, R404A, R507, R407C, R407F and R407A.

    T2 / TE2 valves are supplied as a two part program - Thermostatic element with valve body (T2/TE2) and orifices (No 0X - 06) sold separately.
    Available as angleway valves with flare x flare or flare x solder connection, with internal and external equalisation.

    • Traditional refrigeration
    • Heat pump systems
    • Air conditioning units
    • Liquid coolers
    • Transport refrigeration

    Capacity range:
    • 0.18 – 6.51 TR / 0.64 – 22.9 kW

    • Interchangeable orifice assembly
    • Easy stocking
    • Easy capacity matching
    • Better service
    • Can be supplied with MOP(Max. Operating Pressure)
    • Protects the compressor motor against excessive evaporating pressure during normal operation

  • Balanced PortNo
    Capillary Tube Length1.5M
    Danfoss Code Number068Z3206
    External Equalised (Yes / No)No
    External Equaliser Connectionn/a
    Inlet Connection3/8" Male Flare
    Interchangeable OrificePurchase Separately
    Maximum Working Pressure34 bar (500 psig)
    Operating Temperature Range-40°C to +10°C
    Outlet Connection1/2" Male Flare
    RefrigerantR22 / R407C
    Supplied with MOPn/a
    TX Valve with Interchangeable Orifice - TypeT2 (TX2)
    Valve BodyAngleway
