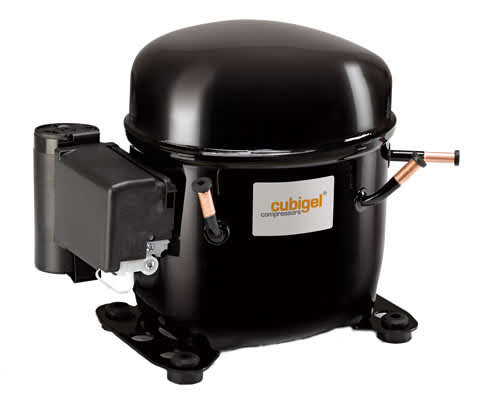

Cubigel Compressor R404A HMBP 1/2 HP 14.3cc High Efficiency - MPT14RA

Cubigel Compressor R404A HMBP 1/2 HP 14.3cc High Efficiency

Part Number: MPT14RA

Cubigel Compressor R404A HMBP 1/2 HP 14.3cc High Efficiency

Part Number: MPT14RA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP1/2 hp
    Displacement14.3 cm?
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.3 kg
    Oil Charge400 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current6.5 amps
    Locked Rotor Amps21 amps
    Rated Load Amps4.61 amps
    Main Winding Resistance4.5 Ω @ 25 ºC
    Start Winding Resistance5.75 Ω @ 25 ºC
  • Start Capacitor102664
    Run Capacitor103220
    Relay405151
    Overload102197
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-50510
    45Capacity (w)110113631663200023752787
    Input (w)683742799857913969
    Current (Amps)3.143.413.683.944.24.45
    50Capacity (w)100912541535185522122606
    Input (w)7017638248859451004
    Current (Amps)3.233.513.84.074.344.61
    55Capacity (w)91811441408171020492425
    Input (w)7197848499139761039
    Current (Amps)3.313.613.914.24.494.77

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -15-10-50510
    45Capacity (w)110113631663200023752787
    Input (w)683742799857913969
    Current (Amps)3.143.413.683.944.24.45
    50Capacity (w)100912541535185522122606
    Input (w)7017638248859451004
    Current (Amps)3.233.513.84.074.344.61
    55Capacity (w)91811441408171020492425
    Input (w)7197848499139761039
    Current (Amps)3.313.613.914.24.494.77

    Note:

    Operating Conditions ASHRAE
    Based on +46 ºC Liquid temp & +35 ºC Suction gas
