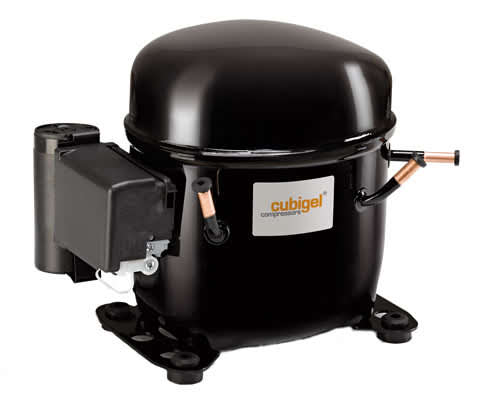

Cubigel Compressor R404A LBP 3/8 HP 12.10cc High Efficiency - MPT12LA

Cubigel Compressor R404A LBP 3/8 HP 12.10cc High Efficiency

Part Number: MPT12LA

Cubigel Compressor R404A LBP 3/8 HP 12.10cc High Efficiency

Part Number: MPT12LA
Cubigel

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • Cubigel have produced more than 100 million compressors and have over 50 years of experience developing compressors for the commercial refrigeration market. Cubigel are focused on the development of quality compressors and condensing units which are supported by European manufacturing in Barcelona, Spain.

    With innovative research and development, Cubigel compressors are designed to optimize energy consumption in response to the issue of global warming. The high efficiency models reduce energy consumption of commercial refrigeration appliances by between 10% and 30%, with respect to standard ranges.

    Cubigel compressors range from 2.2cc up to 34cc and are available in a comprehensive range of refrigerants for today’s market. Due to this large range and a universal drop-in design, Cubigel compressors can be used as a replacement for most common compressors.

    Contact your local Airefrig Australia branch and a sales engineer will assist you with selecting a Cubigel compressor that is appropriate for your application.

  • General Specifications
    Nominal HP3/8 hp
    Displacement12.1 cm³
    FanFan Cooled
    Suction Line Connection8.1 mm
    Charge Line Connection8.1 mm
    Discharge Line Connection6.5 mm
    Connection Typestub tube
    Weight12.3 kg
    Oil Charge350 ml
    Oil TypeISO VG 32 Ester
    Electrical Specifications
    Voltage220-240 / 1 / 50 Hz
    Motor TypeCSR
    Max Continuous Current3.8 amps
    Locked Rotor Amps13.9 amps
    Rated Load Amps2.22 amps
    Main Winding Resistance6.4 Ω @ 25 ºC
    Start Winding Resistance10.4 Ω @ 25 ºC
  • Start Capacitor102661
    Run Capacitor102655
    Relay405149
    Overload102199
  • cubigel_d11
  • R404A
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)30139952267072684410431268
    Input (w)292340390442460497553612
    Current (Amps)1.421.641.872.112.192.362.612.88
    50Capacity (w)28137449464069480910061227
    Input (w)288338390445464501560622
    Current (Amps)1.41.631.872.122.22.382.652.93
    55Capacity (w)2613514686096637769691186
    Input (w)283336390447467506568631
    Current (Amps)1.381.621.872.132.222.42.682.97

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
    R507
    Cond Temp (°C)Evaporating Temperature (°C)
    -40-35-30-25-23.3-20-15-10
    45Capacity (w)30139952267072684410431268
    Input (w)292340390442460497553612
    Current (Amps)1.421.641.872.112.192.362.612.88
    50Capacity (w)28137449464069480910061227
    Input (w)288338390445464501560622
    Current (Amps)1.41.631.872.122.22.382.652.93
    55Capacity (w)2613514686096637769691186
    Input (w)283336390447467506568631
    Current (Amps)1.381.621.872.132.222.42.682.97

    Note:

    Operating Conditions ASHRAE
    Based on +32 ºC Liquid temp & +32 ºC Suction gas
