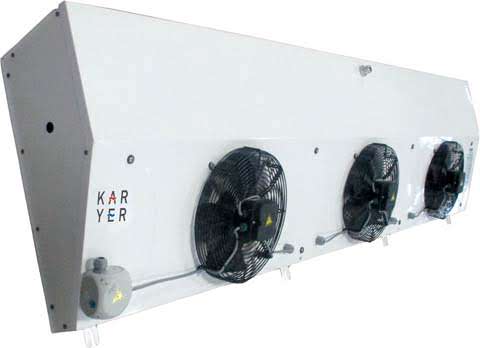

Karyer Med Temp Angled Evaporator - 3 x 300mm Fan - EGM069A3300

Karyer Med Temp Angled Evaporator - 3 x 300mm Fan

Part Number: EGM069A3300

Karyer Med Temp Angled Evaporator - 3 x 300mm Fan

Part Number: EGM069A3300
Karyer

Sign in to your Aire-Biz account to view pricing and stock levels.

Sign in

Not an Airefrig customer? Complete our online account application form here to apply for a credit account.

  • EG Series Evaporators

    The Karyer EG series evaporators are specially designed for a wide variety of smaller commercial refrigeration low and medium temperature applications such as coolrooms, freezer rooms, walk-in rooms and display cabinets etc specifically where space is a premium.

    The EG series evaporators have a professional and fresh white case finish that will compliment any installation project in the Australian marketplace.

    These evaporators are designed with optimum tube diameters that ensure the smallest refrigerant charges coupled with maximum increased efficiency and excellent oil return.

    The fin spacings offered have been selected to ensure a finely tuned balance that will provide trouble free operation with the most efficient cooling effect for correctly engineered applications.

    • Medium Temperature: 4.2mm fin spacing
    • Low Temperature: 7.0mm fin spacing

    The 300mm diameter single-phase AC evaporator fan assemblies are ebm who are renowned worldwide for quality and reliability. These fan motors have been selected specifically to match what has been considered standard sizing and most commonly used for many years in the Australian market.

    The EG series features:

    • Evaporator case panels - powder coated white aluminium
    • Stainless Steel fittings (screws, nuts & bolts etc)
    • Feet are designed for flush mounting
    • Standard coils are designed for multiple refrigerants
    • High performance circuitry with Venturi-type distributor technology
    • Aluminium fins and high-performance copper tube for excellent heat transfer
    • Fin spacings for specific applications (Medium temp: 4.2mm / Low temp: 7.0mm)
    • Main pan/drip tray is hinged for easy access to the coil & TX valve
    • Large side access panels are easily removed to enable access for welding during installation & service
    • Quality defrost heaters to ensure efficient defrost - low temp models only
    • Two wire heater safety thermostats (5.0amp) - low temp models only
    • High quality single phase 300mm ebm AC fan motor assemblies
    • Fan motors and defrost heaters pre-wired back to electrical connection box(s)
  • Evaporator Specifications
    Weight Unpacked40 kg
    Weight Packed75 kg
    Suction Connection7/8 "
    Liquid Connection5/8 "
    Tube Volume5.9 dm³
    Air Flow
    Air Flow3520 m³/h
    Air Throw - STD Fan11.6 m
    Fan Motors
    Voltage230 / 1 / 50 Hz
    Quantity3
    Diameter300 mm
    Total Watts190 watts
    Total Amps0.84 amps
  • ebm Fan Motors - Original ModelS4E300AS72A2
    ebm Fan Motors - Alternate ModelS4E300AS7280
  • Karyer_EG_3F

    Units Dimensions (mm)
    A2626
    B685
    C245
    E2435
    E1818
    E2800
    F630
    DrainG1" Thread (25mm ID Ø)
  • R134A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5010523263066354654669067356

    Note:

    Capacities bases on Fin Series 4.2
    R513A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5092.2521161836213.246334.26593.46933.6

    Note:

    Capacities bases on Fin Series 4.2
    R404A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5658579068706906703873267704

    Note:

    Capacities bases on Fin Series 4.2
    R449A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5375.15500.56526.56558.426686.16959.77318.8

    Note:

    Capacities bases on Fin Series 4.2
    R448A
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5431.685558.46595.26627.4566756.487032.967395.84

    Note:

    Capacities bases on Fin Series 4.2
    R507
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    5490562266666696682871107476

    Note:

    Capacities bases on Fin Series 4.2
    R515B
    Capacity (w) @ 6 KTD
    SST (?C)
    -15-10-5-40510
    4902511861686216640267567194

    Note:

    Capacities bases on Fin Series 4.2
